A solar panel battery connection allows electricity generated by solar panels to be stored and used later. Instead of using all solar energy immediately, a battery storage system can save excess energy during sunny periods and make it available at night or when solar production is lower.
However, connecting solar panels directly to a battery is not as simple as connecting two wires. A safe and properly designed system may require a solar charge controller, hybrid inverter, battery-management system, disconnects, overcurrent protection, appropriate cables, and other equipment.
This complete guide explains how solar panel battery connections work, the difference between direct and inverter-based connections, series and parallel battery configurations, battery sizing, wiring considerations, safety, and common mistakes to avoid.
Important safety note: Solar PV and battery systems can contain dangerous DC voltage and high fault currents. The exact connection depends on the panel, battery, inverter, charge controller, voltage, current, grounding arrangement, and local electrical requirements. Use the manufacturer’s wiring diagrams and have electrical work performed or verified by a qualified professional.
What Is a Solar Panel Battery Connection?
A solar panel battery connection is the electrical arrangement that allows energy from photovoltaic (PV) panels to charge a battery.
A simplified system can look like this:
Solar Panels → Charge Controller → Battery
For a modern solar-plus-storage system, the arrangement may instead be:
Solar Panels → Hybrid Inverter ↔ Battery → Home Electrical Panel
The correct architecture depends on the equipment.
Solar panels generate DC electricity. Batteries also store DC electricity, while most household appliances and the electrical grid use AC electricity. An inverter manages the conversion between DC and AC in systems designed to supply household loads.
How Does a Solar Panel Battery Connection Work?
During the day, solar panels generate electricity.
The energy can then be used in several ways:
- Power household loads.
- Charge the battery.
- Supply both loads and the battery.
- Export excess electricity to the grid when permitted.
When solar production falls, stored battery energy can be discharged to supply compatible loads.
A simplified energy flow is:
SUNLIGHT
↓
SOLAR PANELS
↓
┌─────────────────┐
│ CHARGE CONTROLLER│
│ OR INVERTER │
└────────┬────────┘
↓
BATTERY
↓
INVERTER
↓
HOME ELECTRICAL PANEL
↓
HOME LOADS
Not every system uses a separate charge controller. Some hybrid inverters contain the necessary solar charging and battery-management functions.
Can You Connect Solar Panels Directly to a Battery?
Sometimes, but not simply with ordinary wires.
A solar panel’s voltage changes depending on sunlight and temperature. Connecting a PV array directly to a battery without appropriate charge-control equipment can result in improper charging and potentially unsafe conditions.
A charge controller or suitable integrated charging system regulates the energy going into the battery.
For example:
Solar Panels → MPPT Charge Controller → Battery
An MPPT controller can adjust the electrical operating point of the PV array to efficiently transfer available solar power into the battery within the controller’s specifications.
For larger residential systems, a hybrid inverter may perform several functions in one device.

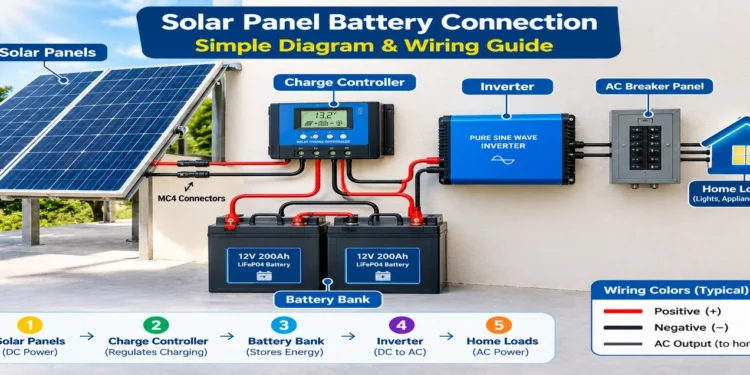

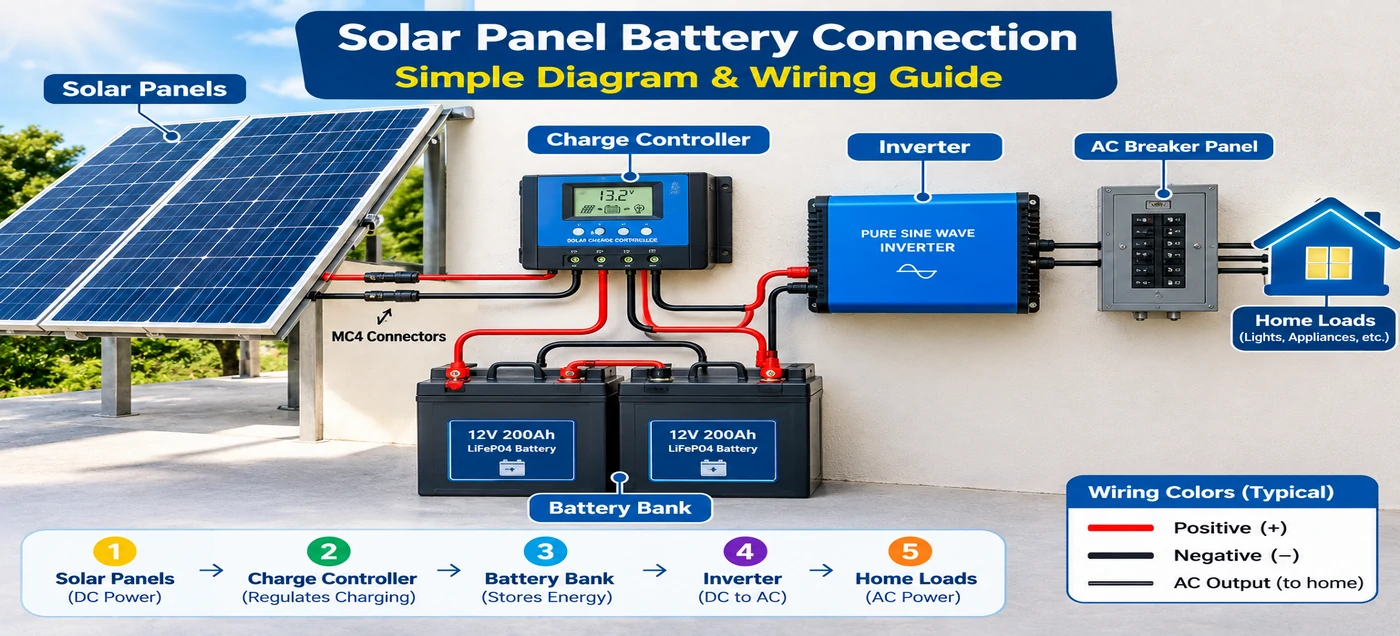

Solar Panel to Battery Wiring Diagram
A simplified DC-coupled configuration is:
SOLAR ARRAY
│
│ DC
↓
PV DISCONNECT/
PROTECTION
│
↓
MPPT CHARGE CONTROLLER
│
│ DC
↓
BATTERY BANK
│
↓
INVERTER
│
│ AC
↓
HOME ELECTRICAL PANEL
│
↓
HOUSEHOLD LOADS
This is a conceptual diagram rather than a construction drawing.
The actual installation may include additional disconnects, fuses, breakers, grounding equipment, monitoring devices, battery-management electronics, and transfer equipment.
What Is the Difference Between DC-Coupled and AC-Coupled Solar Batteries?
There are two important architectures for solar-plus-storage systems.
DC-Coupled Solar Battery
In a DC-coupled system, solar PV and the battery are connected on the DC side through appropriate power electronics.
A simplified arrangement is:
Solar Panels → Hybrid/Bidirectional Inverter → Battery
One advantage can be reduced conversion steps for some charging pathways.
AC-Coupled Solar Battery
An AC-coupled system can be added to an existing solar installation.
A simplified arrangement is:
Solar Panels → PV Inverter → AC Electrical System ↔ Battery Inverter → Battery
DOE explains that PV and storage can be configured using either DC-coupled or AC-coupled architectures, with the equipment requirements differing between the two approaches.
DC vs AC Coupling
| Feature | DC-Coupled | AC-Coupled |
|---|---|---|
| Solar connection | DC side | AC side |
| Battery connection | DC side | Through battery inverter |
| Common application | New solar + storage | Adding storage to existing solar |
| Conversion pathway | Can reduce some conversion steps | May involve additional conversion |
| Design | More integrated | Can be flexible for retrofits |
Neither configuration is automatically right for every home.
Solar Panel Battery Connection With a Hybrid Inverter
A hybrid inverter is commonly used in residential solar-plus-storage systems because it can manage multiple energy sources.
A simplified system looks like:
SOLAR PANELS
│
↓
┌────────────────┐
│ HYBRID INVERTER│
└───────┬────────┘
↙ ↓ ↘
BATTERY HOME GRID
LOADS
Depending on the equipment and configuration, the inverter may:
- Convert solar DC to AC
- Charge the battery
- Discharge the battery
- Supply household loads
- Interact with the utility grid
- Provide backup power
- Monitor system performance
The exact capabilities vary significantly between inverter models.
Solar Panel Battery Connection in Series
Batteries can sometimes be connected in series when the battery manufacturer permits it.
In a series connection, voltage increases while the amp-hour capacity of the string generally remains approximately the same.
For example, conceptually:
Battery 1 → Battery 2 → Battery 3
A simplified example:
- Battery A: 12 V
- Battery B: 12 V
Two batteries in series can produce approximately:
12 V + 12 V = 24 V
This is only an illustrative electrical relationship. Real battery systems require compatible batteries and manufacturer-approved configurations.
Solar Battery Connection in Parallel
In a parallel connection, voltage remains approximately the same while available current and amp-hour capacity can increase.
For example:
Battery A (+) → Battery B (+)
and
Battery A (-) → Battery B (-)
Two identical 12 V, 100 Ah batteries configured appropriately in parallel can provide approximately:
12 V, 200 Ah
Again, the batteries must be designed and approved for parallel operation.
Series vs. Parallel Battery Connection
| Connection | Voltage | Capacity |
|---|---|---|
| Series | Increases | Approximately unchanged |
| Parallel | Approximately unchanged | Increases |
| Series + parallel | Can increase both | Can increase both |
Battery manufacturers may impose specific limits on the number of batteries that can be connected together.
Do not mix incompatible battery models, ages, capacities, or chemistries unless the manufacturer explicitly permits the configuration.
How Many Solar Panels Do You Need to Charge a Battery?
The answer depends on:
- Battery capacity
- Solar panel wattage
- Daily solar production
- Battery charging limits
- Inverter/charge-controller efficiency
- Weather
- Temperature
- Shading
- Desired charging time
- Household energy consumption
A simple illustrative calculation can help explain the concept.
Suppose a battery has:
10 kWh usable capacity
and you want to replace approximately that amount of energy in one day.
If your solar system receives enough usable sunlight to produce an average of 5 equivalent full-sun hours, a simplified calculation would be:
10 kWh ÷ 5 hours = 2 kW
That suggests approximately 2 kW of PV capacity before accounting for system losses, battery charging limits, weather, and other real-world factors.
Therefore, a practical design may require more than the simple mathematical minimum.
How Many 400-Watt Solar Panels for a Battery?
Suppose you want approximately 4 kW of solar capacity.
With 400-watt panels:
4,000 W ÷ 400 W = 10 panels
So the theoretical array would contain approximately 10 × 400 W panels.
This does not mean ten panels are automatically suitable for every battery.
The array voltage and current must remain within the charge controller or inverter’s permitted operating range.
How to Size a Battery for Solar Panels
Battery sizing should start with your electricity needs rather than simply choosing a battery based on the size of the solar array.
Consider:
1. Daily Energy Consumption
Determine how much electricity your home uses per day.
For example:
20 kWh/day
is an energy requirement.
2. Backup Duration
Decide how long you want stored energy to last.
For example:
- 4 hours
- 8 hours
- Overnight
- 24 hours
- Multiple days
3. Essential Loads
You may not need to power everything during an outage.
Essential loads might include:
- Refrigerator
- Internet equipment
- Lighting
- Security system
- Selected outlets
- Medical equipment where appropriately designed
- Water pumps
Large loads such as air conditioning, electric heating, water heaters, or EV chargers can significantly increase battery and inverter requirements.
4. Battery Usable Capacity
Battery nameplate capacity and usable capacity are not necessarily identical.
Always check the manufacturer’s specifications.
kWh vs. kW: Why the Difference Matters
This is one of the most important concepts when choosing a solar battery.
kWh = Energy Capacity
Kilowatt-hours describe how much energy a battery can store.
For example:
10 kWh battery
describes energy capacity.
kW = Power
Kilowatts describe how much power a battery/inverter system can deliver at a given moment.
For example:
5 kW inverter
means the inverter is designed around a particular power output rating.
A battery can have a large energy capacity but still require an appropriately sized inverter to operate large loads.
DOE explains the distinction between storage capacity and power capability as an important part of understanding battery systems.
Can a Solar Battery Power a House at Night?
Yes, if the battery has enough usable energy and the inverter/system is designed to supply the home’s loads.
For example, if your home uses an average of:
1 kW
and a battery has:
10 kWh usable energy
a simplified theoretical calculation would be:
10 kWh ÷ 1 kW = 10 hours
Actual runtime can be shorter because of inverter losses, battery operating limits, changing household loads, and other factors.
Can Solar Batteries Provide Backup During a Power Outage?
A properly designed solar-plus-storage system can provide backup power, but not every solar battery installation provides whole-home backup.
The system may be designed to power:
- Selected essential circuits
- A backup panel
- The entire home
- Specific high-priority equipment
The inverter and transfer/islanding equipment must be designed for the intended backup function.
A standard grid-connected solar system without appropriate backup equipment generally cannot simply continue supplying a home when the utility grid goes down.
Solar-plus-storage systems are specifically used to store solar energy and can be designed for resilience and backup applications.
Solar Battery Connection for Off-Grid Homes
An off-grid system does not depend on a utility grid for normal operation.
A typical architecture can include:
Solar Panels → Charge Controller/Hybrid Inverter → Battery Bank → Inverter → Home Loads
An off-grid system must be carefully sized because there is no utility grid available to supply the difference when solar production is insufficient.
The design should account for:
- Daily consumption
- Peak loads
- Seasonal sunlight
- Battery capacity
- Inverter capacity
- Generator backup, if applicable
- Future electricity demand
Solar Panel Battery Connection for Existing Solar Systems
If you already have solar panels and want to add a battery, there are several possible approaches.
AC-Coupled Retrofit
A battery inverter can be connected to the existing AC electrical system.
This can be useful when the existing solar installation already has a dedicated PV inverter.
DC-Coupled Retrofit
Some systems can be redesigned or replaced with equipment capable of managing both solar PV and battery storage on the DC side.
The appropriate option depends on the existing inverter, PV array, battery, electrical panel, and desired backup functionality.
Do not assume that any battery can be added to any existing solar inverter.

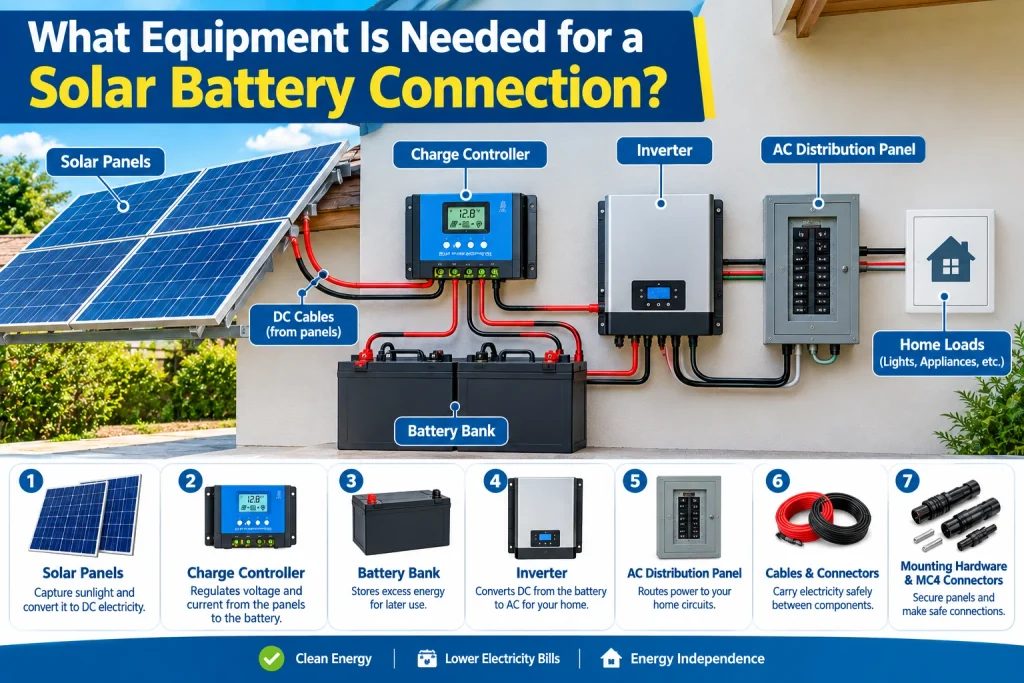

What Equipment Is Needed for a Solar Battery Connection?
A residential system may include:
- Solar panels
- PV cables
- Solar connectors
- Charge controller
- Hybrid inverter or battery inverter
- Battery storage
- Battery-management system
- DC disconnect
- AC disconnect where required
- Circuit breakers
- Fuses or other overcurrent protection
- Grounding/bonding equipment
- Electrical panel
- Monitoring system
- Backup/transfer equipment where applicable
The actual equipment list depends on the architecture.
Solar Battery Cable Size
There is no universal cable size for every solar battery connection.
Cable selection depends on:
- Voltage
- Current
- Cable length
- Temperature
- Installation method
- Voltage-drop requirements
- Insulation rating
- Environmental conditions
- Manufacturer requirements
- Applicable electrical standards
Battery cables can carry very high currents, particularly in low-voltage systems.
For this reason, choosing cable size based only on battery capacity is unsafe.
The cable must be sized for the actual electrical circuit.
Solar Battery Fuse and Breaker Protection
Battery systems may require appropriately rated protection and disconnecting equipment.
The correct rating depends on:
- Battery voltage
- Maximum continuous current
- Short-circuit characteristics
- Inverter rating
- Conductor rating
- Manufacturer requirements
- Installation configuration
- Applicable electrical code
Never choose a fuse or breaker simply because it “looks close” to the battery’s amp-hour rating.
Protection must be designed for the actual circuit.
Can You Connect Two Different Solar Batteries Together?
In general, do not assume that two different batteries can safely be connected together.
Differences in:
- Voltage
- Chemistry
- Capacity
- Internal resistance
- Battery-management system
- State of charge
- Age
- Manufacturer specifications
can create compatibility problems.
Only combine batteries when the manufacturer explicitly supports the configuration.
Common Solar Panel Battery Connection Mistakes
Mistake 1: Connecting panels directly to a battery
Without appropriate charge-control equipment, this can result in improper charging.
Mistake 2: Ignoring maximum PV voltage
The PV array must remain within the inverter or charge controller’s voltage limits.
Mistake 3: Ignoring current limits
The PV array and battery must remain within the equipment’s permitted current range.
Mistake 4: Using undersized battery cables
High current can create excessive heating and voltage drop.
Mistake 5: Mixing incompatible batteries
Different battery characteristics can create charging and balancing problems.
Mistake 6: Choosing a battery based only on kWh
A large battery does not automatically mean it can power large appliances.
Mistake 7: Forgetting inverter power
The inverter must be capable of supplying the required continuous and starting loads.
Mistake 8: Assuming solar works during a blackout
A normal grid-connected solar system may shut down during a grid outage unless it has appropriate backup functionality.
Mistake 9: Ignoring temperature
Both PV voltage and battery performance can be affected by temperature.
Mistake 10: Treating a generic diagram as an installation plan
A diagram explains the concept; it does not replace equipment-specific engineering or installation instructions.
Solar Panel Battery Connection Safety Checklist
Before commissioning a system, verify that:
- Solar panels are compatible with the charge controller/inverter
- PV voltage is within equipment limits
- PV current is within equipment limits
- Battery voltage matches the inverter
- Battery chemistry is supported
- Battery capacity is appropriate
- Battery cables are correctly rated
- Required protection equipment is installed
- Disconnects are correctly located
- Grounding/bonding follows applicable requirements
- Equipment is installed according to manufacturer instructions
- Ventilation and environmental requirements are satisfied
- Backup circuits are correctly identified
- Grid interconnection requirements are satisfied where applicable
Solar Battery Connection vs. Solar Generator
A solar battery system and a portable solar generator are related but not identical.
A permanent home solar battery system is normally integrated with:
- Solar PV
- Inverter equipment
- Electrical service
- Home loads
- Monitoring
- Potential grid connection
A portable power station generally combines battery storage, inverter electronics, and charging inputs into one portable unit.
The appropriate solution depends on the home’s energy requirements and intended use.
Is a Solar Battery Worth It?
The answer depends on your goals.
A battery may be useful when you want:
- Backup power
- More solar energy available after sunset
- Reduced dependence on grid electricity
- Energy shifting
- Greater use of self-generated solar electricity
- Support for selected critical loads
However, batteries add equipment, installation complexity, maintenance considerations, and cost.
The financial value depends on electricity rates, utility rules, battery pricing, system design, battery lifespan, and how the system is operated.
Final Thoughts
A solar panel battery connection can transform a basic solar installation into a solar-plus-storage system capable of storing energy for later use.
The basic concept is:
Solar Panels → Charging/Power Electronics → Battery → Inverter → Home Loads
For some systems, a hybrid inverter manages the solar array, battery, home loads, and grid connection. Other systems use separate PV and battery inverters.
The most important thing is to match every component correctly. Panel voltage, current, battery voltage, battery chemistry, inverter limits, cable ratings, protection equipment, and local electrical requirements all matter.
A generic wiring diagram should therefore be treated as an educational illustration—not as a substitute for the manufacturer’s installation manual or a professional electrical design.
With the right design, solar-plus-storage can allow excess solar energy to be stored during periods of solar production and used later, helping households make better use of their solar generation.
Frequently Asked Questions
How do you connect solar panels to a battery?
A common configuration uses a solar charge controller between the PV array and battery. Some residential systems use a hybrid inverter that manages both solar charging and battery operation.
Can I connect a 12V solar panel to a 12V battery?
The nominal voltage alone is not enough to determine compatibility. The panel’s actual operating and open-circuit voltage, charging requirements, controller type, and battery specifications must all be considered.
Is an MPPT controller required?
Not every system uses a separate MPPT controller. Some hybrid inverters include MPPT solar charging internally. The correct equipment depends on the system architecture.
Can solar panels charge a battery without an inverter?
Yes, in some DC battery systems a suitable charge controller can manage PV-to-battery charging without a separate AC inverter. An inverter is needed when the stored DC energy must be converted to AC for conventional household loads.
Can I add a battery to my existing solar system?
Often, yes, but compatibility must be checked. AC-coupled and DC-coupled retrofit solutions are available depending on the existing system.
What happens when the battery is full?
Depending on the system configuration, solar generation can supply household loads, export power to the grid where permitted, or reduce/curtail PV production when there is no available demand or storage capacity.
How long can a solar battery power a house?
Runtime depends on usable battery capacity and the actual electrical load. A simple estimate is:
Runtime = Usable Battery Capacity ÷ Average Load
Real-world runtime varies because household demand changes and system losses occur.
Can a solar battery run an air conditioner?
It depends on the battery and inverter power ratings, the air conditioner’s running power, and its starting characteristics. Large air-conditioning systems can require substantial power.
Is lithium-ion good for solar battery storage?
Lithium-ion technology is widely used for solar energy storage. DOE notes that lithium-ion batteries are one option for storing solar energy and have become widely used because of their characteristics and availability.
Can I install a solar battery myself?
Small portable systems are different from permanently installed residential battery systems. Permanent high-voltage or high-current battery installations should follow the manufacturer’s requirements and applicable electrical regulations and should be installed or verified by appropriately qualified professionals.
