A 3kW solar panel system can be a practical option for homes, cabins, small businesses, and other properties with moderate electricity consumption. But choosing the right panels is only part of the job. The panels must be connected correctly to the inverter, protection equipment, electrical panel, and if included a battery system.

This guide explains a 3kW solar panel wiring diagram, how panels can be connected in series or parallel, how the inverter fits into the system, and what changes when you add battery storage.

Important: The diagrams and calculations in this article are educational examples, not a universal installation design. Actual PV voltage, current, wire size, overcurrent protection, disconnects, grounding, rapid-shutdown requirements, inverter settings, and grid-interconnection requirements depend on the equipment and local electrical code. A qualified solar/electrical professional should verify the final design before installation.

What Is a 3kW Solar Panel System?

A 3kW solar system has a nominal solar array capacity of approximately 3,000 watts (3 kW).

The exact number of panels depends on the wattage of the modules you choose.

Solar panel connection for home with rooftop panels inverter and electrical panel

For example:

6 × 500W panels = 3,000W
8 × 375W panels = 3,000W
10 × 300W panels = 3,000W
12 × 250W panels = 3,000W

The important point is that 3kW describes the combined rated DC power of the solar array, not necessarily the amount of electricity the system produces every hour.

Actual production varies with sunlight, orientation, shading, temperature, dirt, system losses, and other conditions.

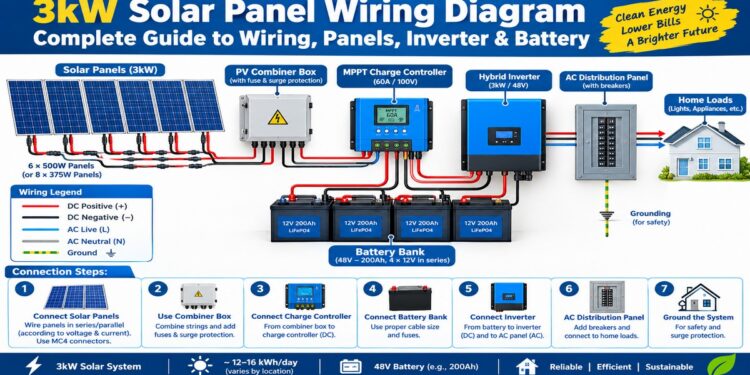

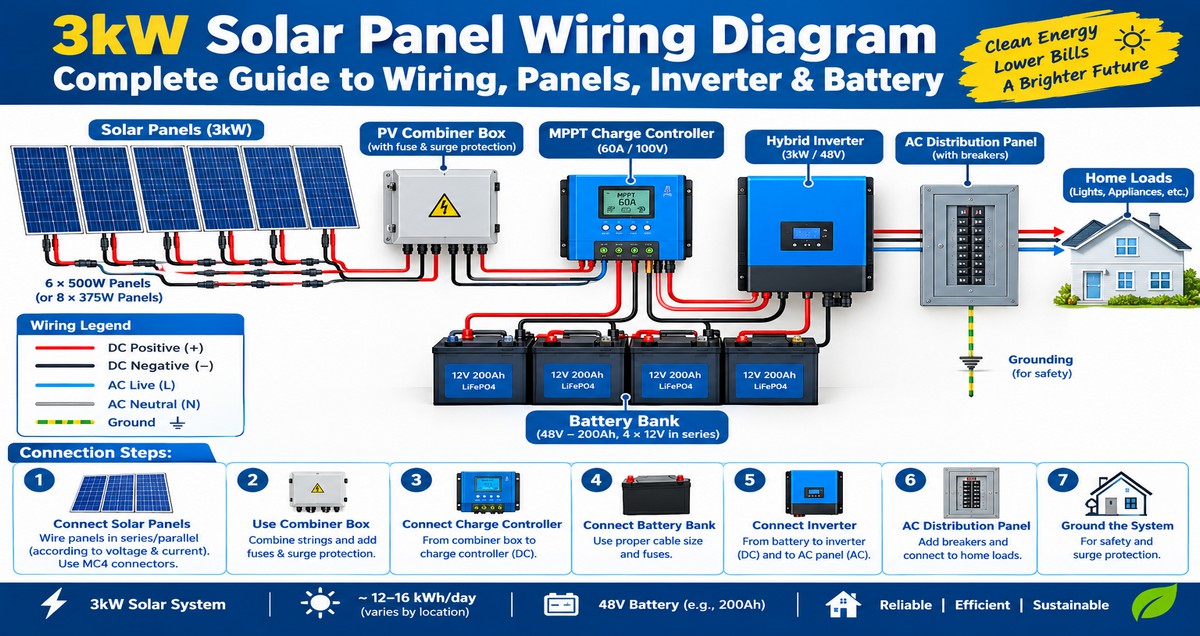

3kW Solar Panel Wiring Diagram

A basic grid-connected 3kW system can be represented like this:

        SUNLIGHT
           ↓
   ┌─────────────────┐
   │  SOLAR PANELS   │
   │   ~3,000 watts  │
   └────────┬────────┘
            │
        DC POWER
            │
            ↓
   ┌─────────────────┐
   │ DC PROTECTION / │
   │ DISCONNECT      │
   └────────┬────────┘
            │
            ↓
   ┌─────────────────┐
   │ SOLAR INVERTER  │
   │    ~3 kW        │
   └────────┬────────┘
            │
         AC POWER
            │
            ↓
   ┌─────────────────┐
   │ AC PROTECTION / │
   │ DISCONNECT      │
   └────────┬────────┘
            │
            ↓
   ┌─────────────────┐
   │ HOME ELECTRICAL │
   │     PANEL       │
   └────────┬────────┘
            │
      ┌─────┴─────┐
      ↓           ↓
   HOME LOADS   UTILITY GRID

Solar panels generate DC electricity. The inverter converts that DC electricity into AC electricity suitable for household use and, where permitted, grid interconnection.

How Does a 3kW Solar Wiring System Work?

The basic energy path is:

Solar panels → DC wiring → inverter → AC wiring → electrical panel → loads/grid

During daylight, the PV modules generate electricity. The inverter converts the DC output to AC.

If the home is using electricity at the same time, solar power can supply the home’s loads. Depending on the system design and utility rules, excess electricity may be exported to the grid.

A complete PV installation can also include components such as disconnects, meters, combiner equipment, protection devices, and other balance-of-system hardware.

How Many Solar Panels Do You Need for 3kW?

The number depends on the panel’s rated power.

Use:

Number of panels = 3,000W ÷ panel wattage

Example 1: 500W panels

3,000 ÷ 500 = 6 panels

So:

6 × 500W = 3,000W

Example 2: 400W panels

3,000 ÷ 400 = 7.5

Because you cannot install half a panel, you would need 8 panels, giving:

8 × 400W = 3,200W

This can sometimes be appropriate depending on the inverter’s permitted PV input and system design.

Example 3: 300W panels

3,000 ÷ 300 = 10 panels

Therefore:

10 × 300W = 3,000W

Always check the inverter’s maximum PV input power, voltage range, current limits, and the panel electrical specifications before deciding on the final configuration.

3kW Solar Panel Series Wiring Diagram

In a series connection, the positive terminal of one panel connects to the negative terminal of the next panel.

A simplified example looks like this:

Panel 1          Panel 2          Panel 3
┌───────┐        ┌───────┐        ┌───────┐
│       │ +──────│ -     │ +──────│ -     │
│  PV   │        │  PV   │        │  PV   │
│       │        │       │        │       │
└───────┘        └───────┘        └───────┘
   +                                -
   │                                │
   └───────────────┬────────────────┘
                   ↓
              PV INVERTER

With panels connected in series:

Voltage increases as panels are added.
Current is approximately that of the string.
The total string voltage must remain within the inverter’s permitted operating and maximum input voltage.
Cold-weather open-circuit voltage must also be considered.

This is why you should not determine the number of panels in a string using wattage alone.

The panel datasheet and inverter specifications are essential.

3kW Solar Panel Parallel Wiring Diagram

In a parallel configuration, positive terminals are connected together and negative terminals are connected together.

Simplified:

Panel 1 ─────┐
             │
Panel 2 ─────┼────── + DC
             │
Panel 3 ─────┘

Panel 1 ─────┐
             │
Panel 2 ─────┼────── - DC
             │
Panel 3 ─────┘

Parallel connections generally increase available current while maintaining approximately the same voltage as an individual panel/string.

This can require larger conductors and appropriate overcurrent protection.

The choice between series and parallel should therefore be based on the inverter’s MPPT voltage range, maximum input voltage, maximum input current, panel specifications, wiring distance, shading conditions, and applicable electrical requirements.

Series vs. Parallel: Which Wiring Method Is Used?

There is no single wiring configuration that works for every 3kW system.

Feature	Series	Parallel
Voltage	Increases	Stays approximately similar
Current	Approximately the same as one panel/string	Increases
Long cable runs	Can be advantageous because higher voltage can reduce current for the same power	May require larger conductors
Shading	Can affect the string	Can behave differently depending on system architecture
Inverter requirements	String voltage must fit inverter limits	Current must fit inverter limits
Design complexity	Depends on system	Depends on system

Modern PV systems may use string inverters, microinverters, or other power-electronics architectures.

3kW Solar Panel Wiring With a String Inverter

A common architecture uses several PV modules connected into one or more strings.

PV MODULES
   │
   ├── String 1 ─────────┐
   │                     │
   └── String 2 ─────────┤
                         ↓
                  DC INPUT
                 ┌───────────┐
                 │  STRING   │
                 │ INVERTER  │
                 │   ~3kW    │
                 └─────┬─────┘
                       │
                      AC
                       │
                       ↓
                HOME ELECTRICAL
                    PANEL

A string inverter receives DC power from a group of panels and converts it to AC.

One potential advantage of a string inverter is a simpler centralized conversion arrangement. However, system performance can be affected by conditions such as shading on modules within a string, depending on the equipment and configuration.

3kW Solar Panel Wiring With Microinverters

Microinverters use a different architecture.

Instead of sending the DC output of multiple panels to one central inverter, a microinverter is installed at or near individual PV modules.

Panel 1 → Microinverter ──┐
Panel 2 → Microinverter ──┤
Panel 3 → Microinverter ──┤── AC SYSTEM ──→ Electrical Panel
Panel 4 → Microinverter ──┘

The U.S. Department of Energy notes that microinverters allow individual modules to operate independently, which can be useful in situations such as partial shading.

3kW Solar Panel Wiring Diagram With Battery

If you want battery backup, the system becomes more complicated.

A simplified battery-based system looks like:

              SOLAR PANELS
                   │
                   ↓
              DC POWER
                   │
                   ↓
          ┌─────────────────┐
          │ HYBRID /        │
          │ BATTERY INVERTER │
          └───────┬─────────┘
                  │
          ┌───────┴────────┐
          ↓                ↓
       BATTERY          AC POWER
          │                │
          │                ↓
          │          HOME PANEL
          │                │
          └────────→ BACKUP LOADS

Some systems use DC coupling, where PV and battery storage share DC-side power electronics. Others use AC coupling, where solar and battery systems interact through AC power equipment.

The appropriate architecture depends on the inverter and battery equipment.

How Big Should the Battery Be for a 3kW Solar System?

A 3kW solar array does not automatically require a specific battery size.

Battery sizing depends on:

How much electricity you use
Which appliances you want to back up
How long you want backup power
Battery usable capacity
Battery power rating
Inverter capacity
Solar production
Desired reserve state of charge

Battery capacity is generally measured in kWh, while power output is measured in kW.

For example, a 10 kWh battery and a 5 kW battery inverter describe different characteristics:

10 kWh = how much energy can be stored
5 kW = how much power the system can deliver at a given time

The Department of Energy distinguishes energy capacity from power capacity when describing energy-storage systems.

Can a 3kW Solar System Power a House?

It depends on the home’s electricity consumption.

A 3kW array can produce useful energy, but its actual daily output varies by location and conditions.

Factors include:

Available sunlight
Panel orientation
Tilt
Temperature
Shading
Dirt
Weather
System losses
Inverter performance

Therefore, 3kW does not mean the system produces 3kWh every hour.

A better approach is to compare expected solar production with the home’s actual electricity consumption.

How to Calculate the Approximate Energy From a 3kW System

A simplified planning formula is:

Daily energy ≈ system size × equivalent peak-sun hours × system factor

For example, suppose a 3kW system receives an assumed 5 equivalent peak-sun hours per day and you use a hypothetical 80% overall factor:

3kW × 5 × 0.80 = 12 kWh/day

This is only an example, not a production guarantee.

Actual output should be estimated using the property’s solar resource, system orientation, shading, equipment, and other site-specific factors.

Solar production is affected by conditions including season, time of day, clouds, dust, shadows, rain, and other environmental factors.

What Inverter Size Is Needed for a 3kW Solar Array?

A 3kW PV array is commonly paired with an inverter selected according to the complete system design—not simply by matching the numbers.

An installer should check:

Maximum DC input power
Maximum DC voltage
MPPT operating voltage range
Maximum input current
Number of MPPT inputs
AC output rating
Grid voltage and frequency
Battery compatibility
Backup output requirements
Manufacturer’s permitted PV-to-inverter sizing

For example, a system may use an inverter around the 3kW range, but the correct choice depends on the specific inverter and local requirements.

Never select an inverter based only on the label “3kW.”

What Size Wire Is Needed for a 3kW Solar System?

There is no single wire size that can safely be recommended for every 3kW solar installation.

Conductor selection depends on factors such as:

Maximum circuit current
Cable length
Voltage
Temperature
Conductor material
Installation method
Voltage-drop requirements
Ambient conditions
Protection requirements
Applicable electrical code
Manufacturer instructions

For that reason, a generic internet wiring diagram should not be used as a substitute for an electrical design.

The Department of Energy identifies wiring, disconnects, meters, combiner boxes, and other equipment as parts of the balance of a complete PV system.

What Components Are Needed for a 3kW Solar System?

A typical system may include:

1. Solar panels

The PV modules generate DC electricity from sunlight.

2. Inverter

The inverter converts DC electricity into AC electricity for household use and/or grid interaction.

3. PV wiring

Cables connect the solar modules to the inverter or other system equipment.

4. DC protection and disconnect equipment

Depending on the system, appropriate protection and disconnect equipment may be required.

5. AC protection

AC-side protection and disconnect equipment may be required between the inverter and electrical system.

6. Electrical panel

The AC output can connect to the building’s electrical distribution system according to the approved design.

7. Mounting system

Panels require an appropriate mounting structure for the roof or ground installation.

8. Monitoring equipment

Many modern inverters provide system monitoring.

9. Battery

A battery is optional for many grid-connected systems but can be included when backup or energy shifting is desired.

10. Charge controller

Some battery-based systems use a separate charge controller, while many modern hybrid systems integrate battery-management and charging functions into the inverter architecture.

3kW Off-Grid Solar Wiring Diagram

An off-grid system needs a different architecture because there is no utility grid supplying power when solar production is insufficient.

A simplified example is:

       SOLAR PANELS
            │
            ↓
      PV CONTROLLER /
      HYBRID INVERTER
            │
            ↓
         BATTERY
            │
            ↓
      OFF-GRID INVERTER
            │
            ↓
       LOADS PANEL
            │
     ┌──────┼──────┐
     ↓      ↓      ↓
   Lights  Fridge  Other Loads

Actual off-grid systems vary considerably.

A properly designed standalone inverter must provide the AC characteristics required by the connected loads, and battery capacity must be sufficient for the intended operating conditions.

3kW Solar Wiring for Grid-Tied Systems

A simplified grid-tied architecture is:

SOLAR ARRAY
     │
     ↓
DC PROTECTION
     │
     ↓
GRID-TIED INVERTER
     │
     ↓
AC PROTECTION
     │
     ↓
ELECTRICAL PANEL
     │
     ├────→ HOME LOADS
     │
     └────→ UTILITY GRID

Grid-interconnected systems must follow the requirements of the applicable utility, electrical authority, equipment manufacturer, and local regulations.

Do not assume that a diagram designed for one country or utility can be used unchanged somewhere else.

Does a Grid-Tied 3kW System Work During a Power Outage?

Usually, a conventional grid-tied solar system does not continue supplying normal household loads during a grid outage.

This is an important safety feature.

Solar-plus-storage systems designed for backup can operate differently when they have the appropriate inverter, battery, controls, and isolation equipment.

The U.S. Department of Energy explains that residential solar panels alone generally aren’t sufficient for backup operation during a grid outage; appropriately configured inverter and storage equipment are needed for systems designed to operate independently of the grid.

Common 3kW Solar Wiring Mistakes

1. Choosing panels based only on total watts

A 3,000W total does not tell you whether the string voltage and current are compatible with the inverter.

2. Ignoring cold-weather voltage

PV open-circuit voltage can change with temperature. Maximum system voltage must be checked under the relevant design conditions.

3. Mixing incompatible panels

Panels connected in the same string should be selected and configured according to the system design and manufacturer’s requirements.

4. Using an unsuitable inverter

The inverter must accept the PV string voltage and current.

5. Using incorrect connectors

PV connectors should be properly matched and installed according to manufacturer requirements.

6. Ignoring shading

Shading can significantly affect PV production, particularly in string-based configurations.

7. Connecting a battery directly without compatible equipment

A solar panel should not simply be connected to a battery without an appropriate charging/control architecture.

8. Treating an online diagram as an installation plan

A generic diagram cannot account for every local code, roof layout, cable route, equipment model, utility requirement, and protection device.

How to Design a 3kW Solar Panel Wiring Diagram

Before drawing the final diagram, collect the following information:

Solar panels

Record:

Rated power
Voc
Vmp
Isc
Imp
Maximum system voltage
Temperature coefficient

Inverter

Record:

Maximum PV voltage
MPPT voltage range
Maximum PV current
Maximum PV input power
AC output rating
Battery compatibility

Installation

Determine:

Number of panels
String arrangement
Cable route
Approximate cable length
Roof/ground location
Shading
Panel orientation
Environmental conditions

Electrical system

Determine:

AC voltage
Grid connection type
Electrical panel configuration
Required disconnects
Protection requirements
Local utility requirements
Applicable electrical code

Only after these details are known should the final string configuration and protection design be selected.

Example: 3kW System Using Six 500W Panels

Suppose you have:

6 × 500W solar panels
Total PV power = 3,000W
A compatible inverter
No battery

One possible conceptual arrangement could be:

500W PANEL 1
      │
      ├── SERIES ── PANEL 2
      │
      ├── SERIES ── PANEL 3
      │
      ├── SERIES ── PANEL 4
      │
      ├── SERIES ── PANEL 5
      │
      └── SERIES ── PANEL 6
                  │
                  ↓
             PV INVERTER
                  │
                  ↓
             AC ELECTRICAL
                PANEL
                  │
            ┌─────┴─────┐
            ↓           ↓
          HOME         GRID

However, six panels in series is only an example.

Whether six modules can safely and properly be connected in one string depends on the actual module Voc/Vmp, temperature coefficients, inverter voltage range, maximum input voltage, and current limits.

Do not copy this configuration without checking the equipment specifications.

How to Read a 3kW Solar Wiring Diagram

When looking at a diagram, follow the electricity in this order:

Step 1: Identify the PV array

Find the solar panels and determine how they are connected.

Step 2: Follow the positive and negative conductors

Check how strings are formed and where they enter the inverter.

Step 3: Find DC protection

Identify the appropriate disconnects and protective equipment.

Step 4: Find the inverter

This is where DC electricity is converted into AC electricity.

Step 5: Follow the AC output

The inverter’s AC output goes through the required protection and connection equipment.

Step 6: Identify loads and grid connection

Determine whether the system supplies:

Household loads
Backup loads
Battery storage
Utility grid
Or a combination

3kW Solar Panel Wiring Diagram: Safety Checklist

Before energizing a PV system, verify that the design includes the required:

PV-rated conductors
Correct connectors
Disconnect equipment
Overcurrent protection where required
Grounding/bonding
Surge protection where required
Inverter protection
AC protection
Rapid-shutdown equipment where required
Labels and warning signs
Utility interconnection equipment where applicable

Requirements vary by location and system architecture.

Solar electrical work can involve dangerous DC and AC voltages. Do not work on energized PV circuits unless you are properly trained and qualified.

Frequently Asked Questions

How many panels are needed for a 3kW solar system?

It depends on panel wattage. Six 500W panels equal 3,000W, while ten 300W panels also equal 3,000W. Actual system design also depends on inverter limits and the electrical characteristics of the panels.

Can I connect 3kW solar panels to a 3kW inverter?

A 3kW PV array can potentially be paired with an inverter around the 3kW class, but compatibility must be checked using the inverter’s maximum PV input power, voltage, current, and MPPT specifications.

Should 3kW solar panels be wired in series or parallel?

Either configuration may be appropriate depending on the panel specifications, inverter, number of modules, shading, cable length, and electrical design.

What voltage does a 3kW solar system use?

There is no single voltage for every 3kW system. PV string voltage depends on the number and electrical characteristics of the panels and how they are connected.

Can I add a battery to a 3kW solar system?

Yes, a compatible battery-storage architecture can be added or designed into a solar system. The inverter, battery voltage, battery management system, charging limits, backup loads, and system architecture all need to be compatible.

Can a 3kW solar system run a refrigerator?

It may be able to, but the answer depends on the refrigerator’s running power, startup requirements, other simultaneous loads, solar production, and whether battery backup is available.

Can a 3kW solar system run an air conditioner?

Possibly, but air conditioners can have substantial starting and running power requirements. The inverter and overall system must be designed for the load.

Does a 3kW solar system need a battery?

No. A grid-connected system can operate without battery storage. Batteries are useful when you want energy storage, backup power, or greater control over when solar energy is used.

Can solar panels be connected directly to a battery?

A conventional PV module should not simply be connected directly to a battery without an appropriate charging/control system. Depending on the architecture, this may involve a charge controller or compatible hybrid/battery inverter.

How much electricity does a 3kW solar system produce per day?

There is no universal daily number. Production depends heavily on solar resource, season, orientation, shading, temperature, system losses, and other site conditions. A production estimate should use local solar data rather than assuming that the system produces its full 3kW continuously.

Final Thoughts

A 3kW solar panel wiring diagram is useful for understanding how solar panels, PV strings, protection equipment, an inverter, batteries, the electrical panel, and the utility grid can fit together.

The most important point is that 3kW tells you the approximate rated capacity of the PV array, but it does not determine the wiring configuration by itself.

For a safe design, match the solar modules to the inverter’s voltage and current limits, calculate string voltage under the relevant temperature conditions, select appropriately rated conductors and protection, and follow the electrical requirements that apply to your installation.

A good solar wiring diagram should ultimately be based on the actual equipment datasheets and site conditions, rather than a generic diagram found online.

Safety note: PV systems can produce hazardous DC voltage even when the utility grid is disconnected. Have the final electrical design and installation checked by a qualified professional and follow local electrical and utility requirements.

Sources and further reading

U.S. Department of Energy — Solar Photovoltaic System Design Basics.
U.S. Department of Energy — Solar Integration: Inverters and Grid Services Basics.
U.S. Department of Energy — Solar and Resilience Basics.
U.S. Department of Energy — Solar Integration: Solar Energy and Storage Basics.
