Alright, lemme tell ya something. I’ve been setting up solar systems for over 10 years now. Off-grid, on-grid, half-broken systems folks bought online… I’ve seen it all. But when it comes to off grid solar power system installation, there’s one thing I always say: “Plan it right, or plan to be left in the dark.”
This guide? It’s what I wish someone gave me when I started. Simple, real, and full of stuff you won’t find in shiny brochures.
What Is an Off Grid Solar Power System (And Do You Need One)?
An off-grid system means you’re not connected to the utility company. No power lines. No bills. Just you, the sun, and your setup.
It’s perfect for:
- Cabins in the woods
- RVs and tiny homes
- Farms or remote homes
- Folks who just want to say goodbye to power bills forever
Here’s what an off-grid system usually includes:
- Solar panels (to collect energy)
- Battery bank (to store power)
- Inverter (to turn DC into usable AC power)
- Charge controller (to manage battery charging)
- Wires, fuses, disconnects, breakers (don’t skip these, safety first)
Step-by-Step: How I Install Off Grid Solar Power System Installation
1. Know Your Power Needs (Seriously)
Biggest mistake I see? Folks don’t know how much power they use.
Use a Kill-A-Watt meter or check the labels on your fridge, lights, laptop, etc.
Example:
- Fridge: 1000Wh/day
- Lights: 500Wh/day
- Laptop + phone: 500Wh/day Total: 2000Wh/day → Plan for 2500Wh just to be safe.
2. Pick the Right Battery Bank
You need to store enough power to last through the night (and maybe a cloudy day or two).
My Rule of Thumb:
- Daily use x 2.5 = Battery capacity in Wh
- 2500Wh x 2.5 = 6250Wh storage
That’s about:
- 2x 48V 100Ah lithium batteries
- OR 4x 12V 200Ah AGM batteries
3. Choose a Solid Inverter (Don’t Go Cheap)
Trust me, a bad inverter ruins everything. Go with a pure sine wave inverter.
I like:
- Growatt 5000VA (solid mid-range choice)
- Victron (more $$, but super reliable)
Match your inverter to your battery voltage and total watt usage.

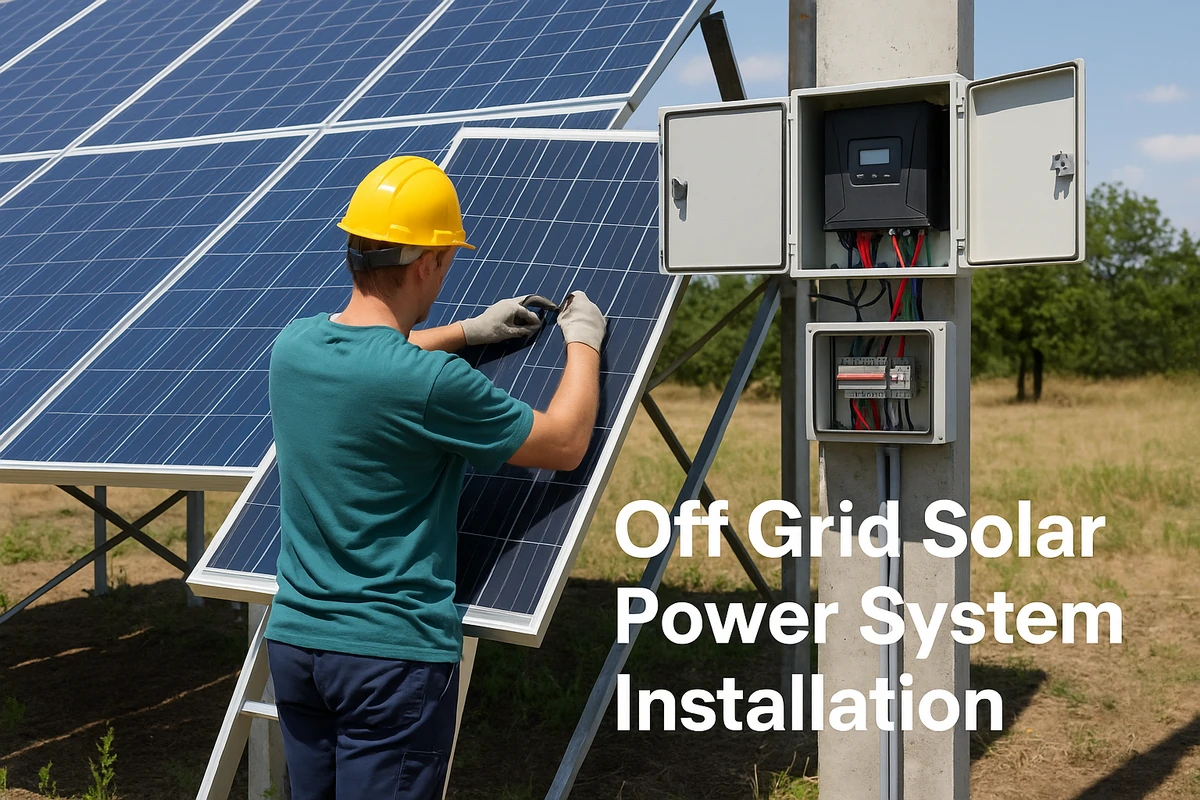

4. Mount the Solar Panels (Safely!)
Face them south (if you’re in the northern hemisphere), tilt about 30-40 degrees.
Pro tips:
- Keep panels clean
- Avoid shade at all costs
- Use strong racking – wind is no joke
5. Connect It All (Carefully)
Don’t just plug stuff in randomly. Here’s my order:
- Mount components on plywood board
- Connect batteries to inverter
- Connect solar panels to charge controller
- Connect controller to batteries
- Add circuit breakers and fuses everywhere
Label all wires. I mean it.
Real Questions I Get All the Time
Q: Can I run an air conditioner off-grid? A: You can, but you’ll need a big inverter and lots of solar + battery power. I usually recommend inverter-style ACs.
Q: Do I need a generator backup? A: If you live somewhere cloudy or snowy, yes. Even a small one helps charge batteries when solar is low.
Q: Can I DIY this whole thing? A: Absolutely. Just take your time, double check everything, and stay safe. I’ve helped tons of folks do it with zero experience.
Simo’s Final Thoughts
Installing an off grid solar power system ain’t just about saving on bills. It’s about freedom. It’s about knowing you’re in control, rain or shine.
It takes planning, patience, and yeah—maybe a few swear words if a wire slips loose. But once it’s up and running? Man, nothing beats the feeling.
If you’re thinking about going off-grid, do it smart. And hey—if you get stuck, shoot me a message. I’m always happy to help.
